DS EUROSPRINT SERIES
Trailer-Mounted Self-Erecting Crane - Fully Hydraulically Erected in 15 to 30 Minutes
Quickly on site. Ready for immediate use. The EUROGRU DS Series was developed specifically for companies that need fast, flexible and space-saving crane solutions. Thanks to fully hydraulic erection, the crane is ready for use within minutes - with no additional assembly work.
Our EUROSPRINT cranes can be transported on motorways at speeds of up to 80 km/h and offer optimum ease of operation. Standard features include full galvanisation, a steep-angle jib position, a frequency-controlled slewing drive, a small slewing radius and radio remote control.
These cranes are designed as trailers and are transported as a complete unit, including ballast and accessories.

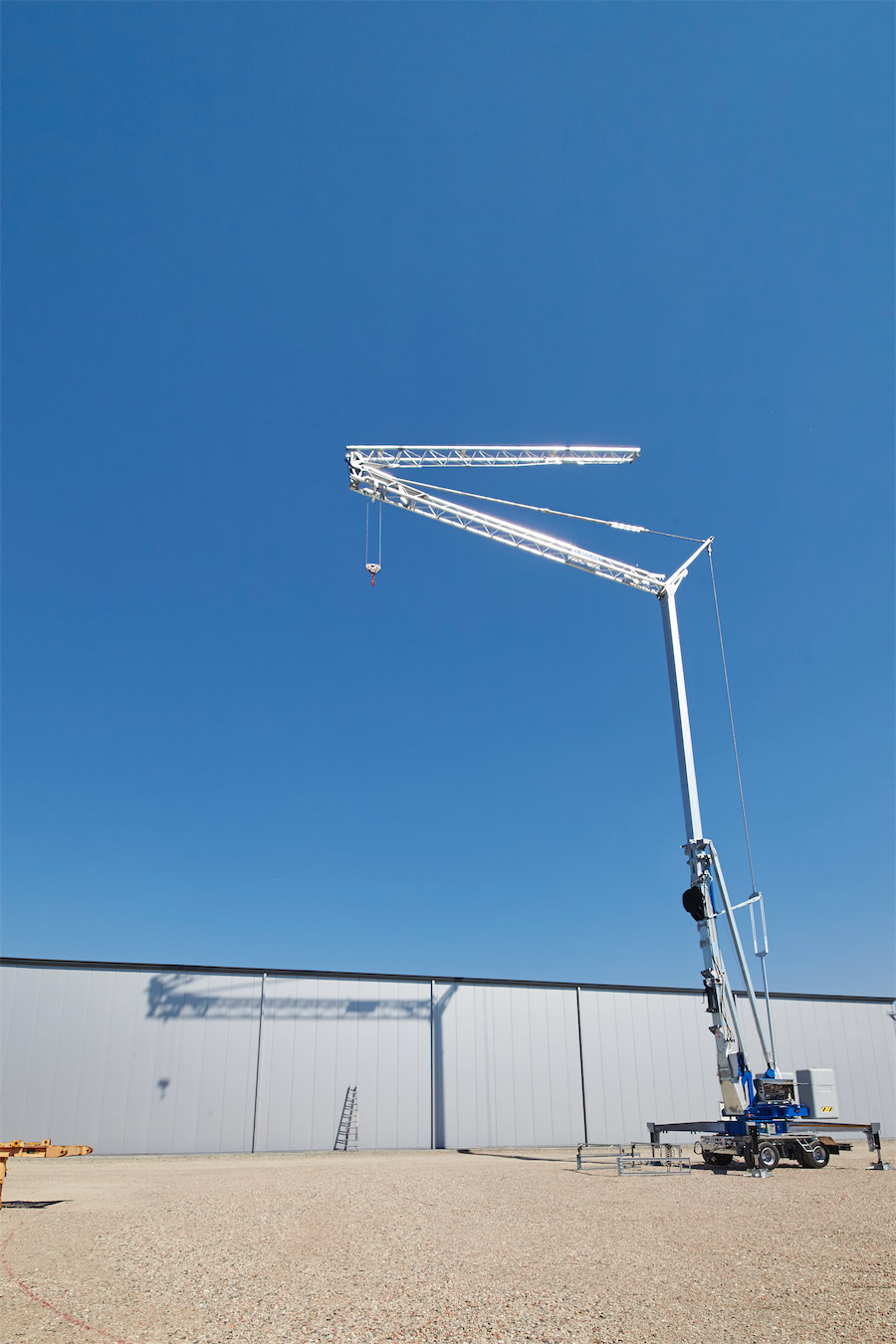

Whether for roofing contractors, carpentry businesses, metal fabricators or small construction companies - the DS Series delivers maximum efficiency with minimal time expenditure. Compact in transport, powerful in operation - that is the EUROGRU DS.
DS Series at a Glance - Additional Models and Performance Data Available in Our Range
| Maximum jib length | Maximum lifting capacity | Maximum Hook height |
|---|---|---|
| 15 m | 1.500 kg | 20 m |
| Maximum jib length | Maximum lifting capacity | Maximum Hook height |
|---|---|---|
| 14,64 m | 1.500 kg | 20 m |
| Maximum jib length | Maximum lifting capacity | Maximum Hook height |
|---|---|---|
| 16 m | 1.500 kg | 25,9 m |
| Maximum jib length | Maximum lifting capacity | Maximum Hook height |
|---|---|---|
| 21 m | 1.800 kg | 25,9 m |
| Maximum jib length | Maximum lifting capacity | Maximum Hook height |
|---|---|---|
| 22 m | 1.800 kg | 24,1 m |
| Maximum jib length | Maximum lifting capacity | Maximum Hook height |
|---|---|---|
| 24 m | 1.800 kg | 23,8 m |
| Maximum jib length | Maximum lifting capacity | Maximum Hook height |
|---|---|---|
| 26 m | 1.800 kg | 28,6 m |
| Maximum jib length | Maximum lifting capacity | Maximum Hook height |
|---|---|---|
| 26 m | 2.500 kg | 32,4 m |
| Maximum jib length | Maximum lifting capacity | Maximum Hook height |
|---|---|---|
| 27 m | 2.500 kg | 32,4 m |
| Maximum jib length | Maximum lifting capacity | Maximum Hook height |
|---|---|---|
| 31 m | 3.000 kg | 27,7 m |
High-Performance Technology
- Lifting capacity: up to 3,000 kg
- Jib length: up to 31 m
- Hook height: up to 32.4 m
- Erection time: approx. 30 minutes
- Slewing range: continuous 360° (not standard)
- Power supply: 230 V, 400 V / 50 Hz (depending on model)
- Transport: road approval, compact chassis
Your Benefits in Operation
- Fully hydraulic erection/dismantling at the touch of a button - no additional equipment required
- Reinforced upper chord enables minimal transport preparation
- Adaptation of the crane to the customer's truck
- Compact and manoeuvrable - ideal for small construction sites
- Low-maintenance, safe and reliable
- Simple operation by radio remote control
- Ideal for roofing and industrial building construction
Advantages of the EUROGRU DS Compared with a Truck-Mounted Crane
The DS crane operates independently of the vehicle and can be set up at any job site without tying up a truck.
While the crane is in operation, the towing vehicle can already deliver additional materials or be used at the next job site.
A truck with a loader crane often costs twice as much to purchase as a EUROGRU DS crane. Most ongoing costs, such as insurance, taxes, maintenance, statutory inspections and tyres, are also eliminated.
The DS crane is low-maintenance, durable and cost-efficient – ideal for skilled trades businesses with a strong focus on cost control.
With an outreach of up to 31 m and hook heights of up to 32.4 m, the DS crane offers significantly greater reach than typical truck-mounted cranes.
Ideal for roofing, industrial building construction, timber construction and prefabricated component assembly, where precise lifting is essential.
The DS crane can be towed by a suitable towing vehicle or van.
This reduces personnel costs and provides greater flexibility when planning operations.
As the DS 153 crane is transported as a trailer, it is not subject to HGV driving bans.
This is particularly advantageous for weekend work or early-morning installations.
The trolley jib enables safe, sway-free operation when moving loads forwards and backwards.
This provides greater safety in applications where mobile truck-mounted cranes reach their limits.
Thanks to its compact design, the DS crane can be set up in under 15 minutes and is ready for immediate use. Ideal for short-term construction projects, repair work or multiple jobs in a single day.
Questions? We will be happy to advise you personally. → Contact us now
